SQL SELF JOIN

What is SELF JOIN?​

SQL SELF JOIN is a technique where a table is joined with itself to compare rows within the same table or to work with hierarchical data structures. This is accomplished by treating the same table as if it were two separate tables using different table aliases.

note

Key Characteristics of SELF JOIN: Same Table: Joins a table with itself using different aliases.

Hierarchical Data: Perfect for parent-child relationships within a single table.

Row Comparison: Enables comparison between different rows in the same table.

Flexible Join Types: Can be INNER, LEFT, RIGHT, or FULL OUTER self joins.

https://github.com

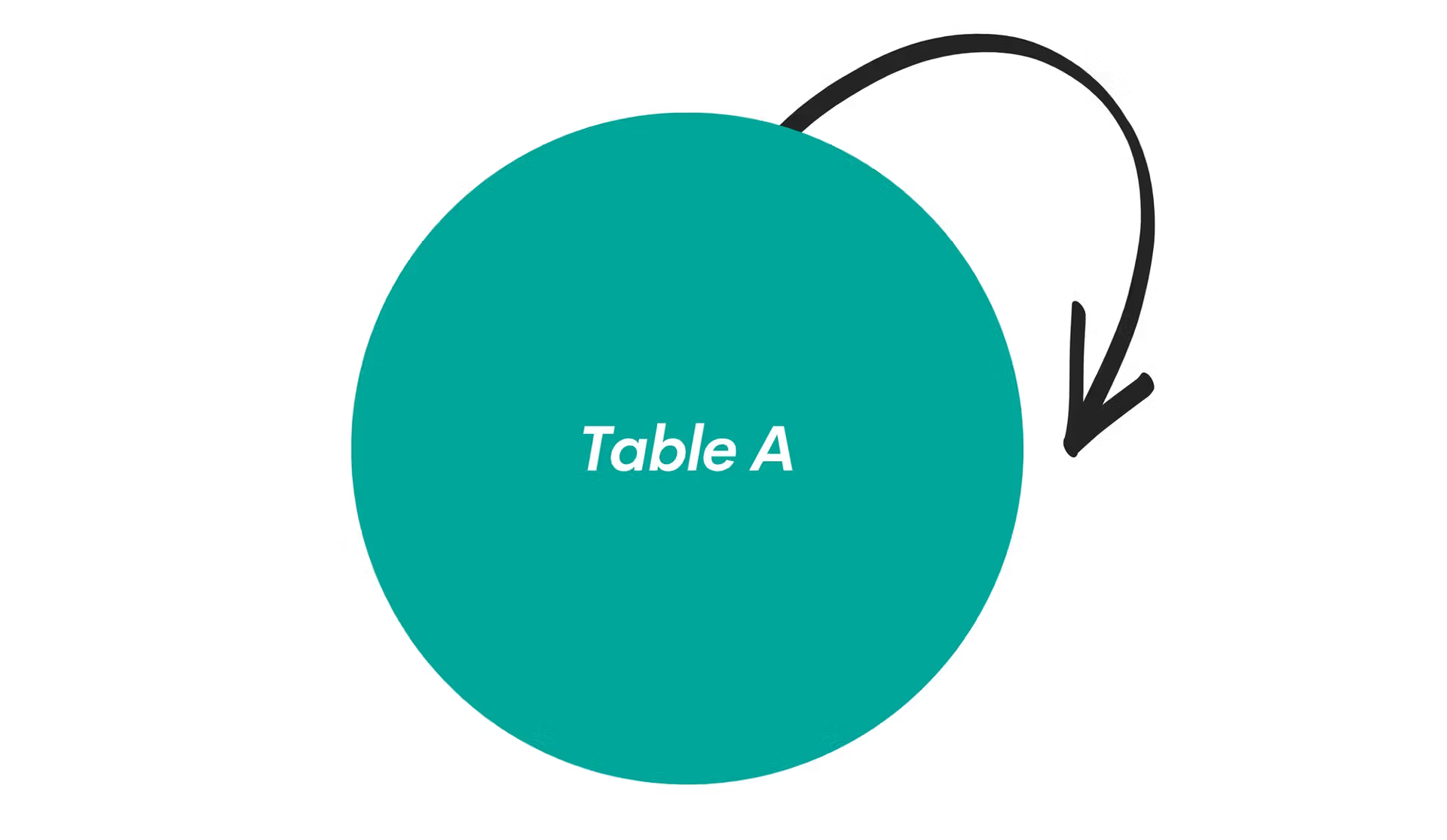

Diagram illustrating SQL self join operation

success

When to Use SELF JOIN:

✅ Hierarchical Structures: Employee-manager relationships, organizational charts ✅ Comparing Rows: Finding duplicates, comparing values within the same table ✅ Sequential Data: Analyzing consecutive records or time-series data ✅ Graph Relationships: Social networks, recommendation systems ✅ Parent-Child Data: Category trees, menu structures, geographical hierarchies

Real-World Example: An employee table where each employee has a manager_id pointing to another employee in the same table. SELF JOIN helps you retrieve employee names along with their manager names.

info

Basic SELF JOIN Syntax​

SELECT columns
FROM table_name alias1
JOIN table_name alias2
ON alias1.column = alias2.column;
ComponentPurposeExample
SELECTChoose columns from both aliasesSELECT e1.name, e2.name AS manager
FROMFirst reference to tableFROM employees e1
JOINSecond reference to same tableJOIN employees e2
ONJoin conditionON e1.manager_id = e2.employee_id

Table Alias Requirements​

-- Wrong: No aliases (causes ambiguity)
SELECT name, name
FROM employees
JOIN employees ON manager_id = employee_id;

-- Correct: Using aliases to distinguish references
SELECT e1.name AS employee, e2.name AS manager
FROM employees e1
JOIN employees e2 ON e1.manager_id = e2.employee_id;

Practical Examples​

-- Get employees and their managers
SELECT
    e1.employee_id,
    e1.employee_name AS employee,
    e1.position AS employee_position,
    e1.salary AS employee_salary,
    e2.employee_id AS manager_id,
    e2.employee_name AS manager,
    e2.position AS manager_position,
    e1.hire_date,
    DATEDIFF(CURRENT_DATE, e1.hire_date) AS days_employed
FROM employees e1
LEFT JOIN employees e2 ON e1.manager_id = e2.employee_id
WHERE e1.status = 'Active'
ORDER BY e2.employee_name, e1.employee_name;

-- LEFT JOIN ensures we see employees without managers (CEO, etc.)

Performance Considerations​

tip

SELF JOIN Performance Tips:

  1. Proper Indexing: Ensure columns used in join conditions are indexed

    -- Essential indexes for employee hierarchy
    CREATE INDEX idx_employees_manager_id ON employees(manager_id);
    CREATE INDEX idx_employees_employee_id ON employees(employee_id);

  2. Limit Recursive Depth: Prevent infinite loops in hierarchical queries

    -- Add level limit to recursive queries
    WHERE level <= 5  -- Maximum 5 levels deep

  3. Filter Early: Use WHERE clauses to reduce dataset size

    -- Filter before joining for better performance
    FROM employees e1
    JOIN employees e2 ON e1.manager_id = e2.employee_id
    WHERE e1.status = 'Active' AND e2.status = 'Active';

  4. Use EXISTS for Existence Checks:

    -- More efficient for checking if employee has subordinates
    SELECT employee_name,
           EXISTS(SELECT 1 FROM employees e2 WHERE e2.manager_id = e1.employee_id) AS is_manager
    FROM employees e1;

  5. Avoid Cartesian Products:

    -- Bad: Missing join condition creates Cartesian product
    SELECT e1.name, e2.name FROM employees e1, employees e2;

    -- Good: Proper join condition
    SELECT e1.name, e2.name
    FROM employees e1
    JOIN employees e2 ON e1.manager_id = e2.employee_id;

Best Practices Summary​

info

SELF JOIN Best Practices:

✅ Essential Guidelines:

  1. Always Use Table Aliases: Required to distinguish table references
  2. Proper Join Conditions: Ensure meaningful relationships between rows
  3. Handle NULLs Appropriately: Use LEFT JOIN for optional relationships
  4. Index Join Columns: Critical for performance with large tables
  5. Limit Result Sets: Use WHERE clauses and LIMIT when testing
  6. Document Complex Logic: Comment hierarchical and recursive queries
  7. Test Edge Cases: Verify behavior with NULL values and missing relationships

🔧 Performance Optimization:

-- Example of well-optimized SELF JOIN
SELECT
    emp.employee_name AS employee,
    mgr.employee_name AS manager,
    emp.department
FROM employees emp
LEFT JOIN employees mgr ON emp.manager_id = mgr.employee_id
WHERE emp.status = 'Active'  -- Filter early
  AND emp.hire_date >= '2020-01-01'  -- Limit scope
  AND (mgr.status = 'Active' OR mgr.status IS NULL)  -- Handle NULLs
ORDER BY emp.department, mgr.employee_name, emp.employee_name
LIMIT 1000;  -- Reasonable limit for testing

📝 Documentation Example:

/*
Purpose: Generate employee hierarchy report showing direct reporting relationships
Business Logic:
- Shows all active employees and their direct managers
- Includes employees without managers (CEO level)
- Orders by department then hierarchy
Performance: Uses indexes on employee_id and manager_id columns
*/

Conclusion​

SELF JOIN is a powerful technique for analyzing relationships within a single table. Whether you're working with hierarchical organizational data, comparing sequential records, finding duplicates, or analyzing peer relationships, mastering SELF JOIN will significantly enhance your ability to extract meaningful insights from your data. Remember to always use proper aliases, handle NULL values appropriately, and optimize for performance with appropriate indexing and filtering.
