SQL FULL OUTER JOIN

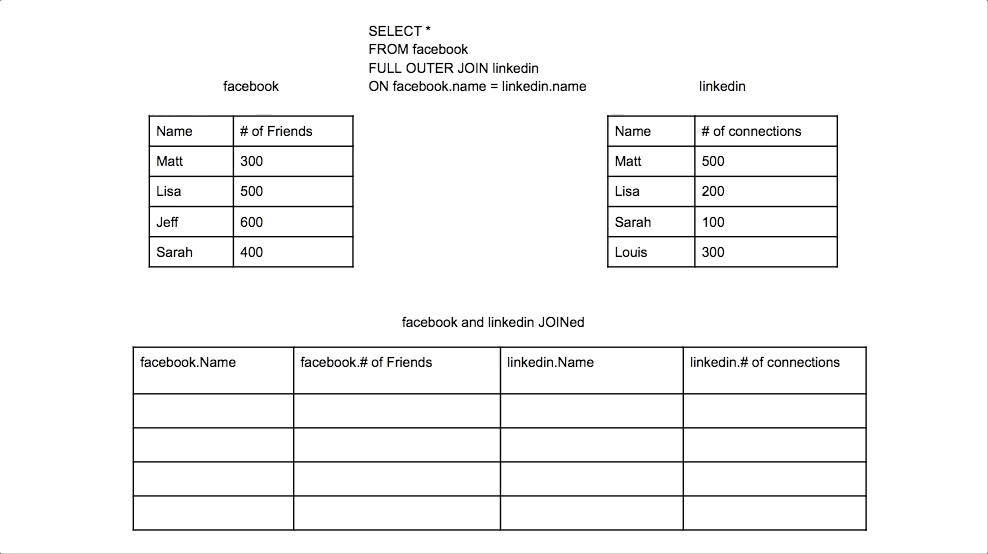

SQL FULL OUTER JOIN (also known as FULL JOIN) returns all records from both tables, regardless of whether there are matches in the other table. It combines the results of both LEFT JOIN and RIGHT JOIN, showing all records from both tables with NULL values where no matches exist.

note

Key Characteristics of FULL OUTER JOIN:

• Complete Dataset: Returns every record from both tables, creating a comprehensive view.

• Union of Results: Combines LEFT JOIN + RIGHT JOIN behavior in a single operation.

• NULL Handling: Shows NULL values for missing matches on either side.

• Data Completeness: Ensures no data is lost from either table in the join operation.

https://github.com

success

When to Use FULL OUTER JOIN:

• Data Synchronization: Comparing data between two systems to find discrepancies
• Complete Auditing: Ensuring all records from both sources are accounted for
• Data Migration: Validating data transfer between old and new systems
• Comprehensive Reporting: Creating reports that need all entities from both tables

Real-World Example: Comparing customer data between two different systems (CRM and ERP) to identify customers who exist in one system but not the other, ensuring complete data synchronization.

info

Basic FULL OUTER JOIN Syntax

SELECT column1, column2, ...
FROM table1
FULL OUTER JOIN table2
ON table1.column_name = table2.column_name;

Component	Purpose	Example
SELECT	Choose columns to display	SELECT c.name, o.order_id
FROM	First table	FROM customers c
FULL OUTER JOIN	Second table	FULL OUTER JOIN orders o
ON	Join condition	ON c.customer_id = o.customer_id

Alternative Syntax

-- FULL JOIN (shorthand, same result)
SELECT c.customer_name, o.order_id
FROM customers c
FULL JOIN orders o ON c.customer_id = o.customer_id;

-- Simulating FULL OUTER JOIN with UNION (for databases that don't support it)
SELECT c.customer_name, o.order_id
FROM customers c
LEFT JOIN orders o ON c.customer_id = o.customer_id
UNION
SELECT c.customer_name, o.order_id
FROM customers c
RIGHT JOIN orders o ON c.customer_id = o.customer_id;

Practical Examples

Basic Example

-- Get all customers and all orders, showing complete relationship picture
SELECT
    c.customer_id,
    c.customer_name,
    c.email,
    c.registration_date,
    o.order_id,
    o.order_date,
    o.total_amount,
    CASE
        WHEN c.customer_id IS NULL THEN 'Orphaned Order'
        WHEN o.order_id IS NULL THEN 'Customer Without Orders'
        ELSE 'Active Relationship'
    END AS relationship_status
FROM customers c
FULL OUTER JOIN orders o ON c.customer_id = o.customer_id
ORDER BY c.customer_name, o.order_date;

-- Result: All customers AND all orders, with NULLs for non-matches

Data Synchronization

-- Compare customer data between two systems
SELECT
    COALESCE(crm.customer_id, erp.customer_id) AS customer_id,
    crm.customer_name AS crm_name,
    erp.customer_name AS erp_name,
    crm.email AS crm_email,
    erp.email AS erp_email,
    CASE
        WHEN crm.customer_id IS NULL THEN 'Missing in CRM'
        WHEN erp.customer_id IS NULL THEN 'Missing in ERP'
        WHEN crm.email != erp.email THEN 'Email Mismatch'
        WHEN crm.customer_name != erp.customer_name THEN 'Name Mismatch'
        ELSE 'Synchronized'
    END AS sync_status
FROM crm_customers crm
FULL OUTER JOIN erp_customers erp ON crm.customer_id = erp.customer_id
WHERE crm.customer_id IS NULL
   OR erp.customer_id IS NULL
   OR crm.email != erp.email
   OR crm.customer_name != erp.customer_name
ORDER BY sync_status, customer_id;

Complete Inventory Analysis

-- Compare current inventory with sales data
SELECT
    COALESCE(inv.product_id, sales.product_id) AS product_id,
    inv.product_name,
    inv.current_stock,
    inv.reorder_level,
    COALESCE(sales.units_sold, 0) AS units_sold_ytd,
    COALESCE(sales.revenue, 0) AS revenue_ytd,
    CASE
        WHEN inv.product_id IS NULL THEN 'Discontinued Product Still Selling'
        WHEN sales.product_id IS NULL THEN 'No Sales Activity'
        WHEN inv.current_stock < inv.reorder_level THEN 'Reorder Needed'
        WHEN sales.units_sold = 0 THEN 'Slow Moving'
        ELSE 'Active Product'
    END AS inventory_status
FROM current_inventory inv
FULL OUTER JOIN (
    SELECT
        oi.product_id,
        SUM(oi.quantity) AS units_sold,
        SUM(oi.quantity * oi.unit_price) AS revenue
    FROM order_items oi
    JOIN orders o ON oi.order_id = o.order_id
    WHERE YEAR(o.order_date) = 2024
    GROUP BY oi.product_id
) sales ON inv.product_id = sales.product_id
ORDER BY inventory_status, revenue_ytd DESC;

Financial Reconciliation

-- Reconcile transactions between accounting systems
SELECT
    COALESCE(sys1.transaction_id, sys2.transaction_id) AS transaction_id,
    COALESCE(sys1.transaction_date, sys2.transaction_date) AS transaction_date,
    sys1.amount AS system1_amount,
    sys2.amount AS system2_amount,
    ABS(COALESCE(sys1.amount, 0) - COALESCE(sys2.amount, 0)) AS difference,
    CASE
        WHEN sys1.transaction_id IS NULL THEN 'Missing in System 1'
        WHEN sys2.transaction_id IS NULL THEN 'Missing in System 2'
        WHEN sys1.amount != sys2.amount THEN 'Amount Discrepancy'
        ELSE 'Reconciled'
    END AS reconciliation_status
FROM accounting_system1 sys1
FULL OUTER JOIN accounting_system2 sys2
    ON sys1.transaction_id = sys2.transaction_id
WHERE sys1.transaction_id IS NULL
   OR sys2.transaction_id IS NULL
   OR sys1.amount != sys2.amount
ORDER BY reconciliation_status, transaction_date DESC;

Employee Department Analysis

-- Complete view of employees and departments
SELECT
    COALESCE(e.employee_id, 'N/A') AS employee_id,
    e.employee_name,
    e.position,
    e.salary,
    d.department_name,
    d.location,
    d.budget,
    CASE
        WHEN e.employee_id IS NULL THEN 'Empty Department'
        WHEN d.department_id IS NULL THEN 'Employee Without Department'
        ELSE 'Properly Assigned'
    END AS assignment_status,
    COUNT(*) OVER (PARTITION BY d.department_id) AS dept_employee_count
FROM employees e
FULL OUTER JOIN departments d ON e.department_id = d.department_id
ORDER BY d.department_name, e.employee_name;

Sample Output

-- Sample result showing complete customer-order relationship:

customer_id | customer_name | email              | order_id | order_date | relationship_status
------------|---------------|-------------------|----------|------------|--------------------
1           | John Smith    | john@email.com    | 101      | 2024-01-15 | Active Relationship
1           | John Smith    | john@email.com    | 105      | 2024-02-20 | Active Relationship
2           | Jane Doe      | jane@email.com    | 102      | 2024-01-18 | Active Relationship
3           | Bob Wilson    | bob@email.com     | NULL     | NULL       | Customer Without Orders
4           | Alice Brown   | alice@email.com   | 104      | 2024-02-01 | Active Relationship
NULL        | NULL          | NULL              | 999      | 2024-01-10 | Orphaned Order

-- Note: Shows ALL customers (including Bob with no orders)
-- AND all orders (including orphaned order 999 with no customer)

Database Support & Alternatives

warning

Database Compatibility:

Not all databases support FULL OUTER JOIN natively:

• Supported: PostgreSQL, SQL Server, Oracle, DB2
• Not Supported: MySQL, SQLite (older versions)

Alternative for MySQL/SQLite:

-- Simulate FULL OUTER JOIN using UNION
SELECT c.customer_id, c.customer_name, o.order_id, o.total_amount
FROM customers c
LEFT JOIN orders o ON c.customer_id = o.customer_id
UNION
SELECT c.customer_id, c.customer_name, o.order_id, o.total_amount
FROM customers c
RIGHT JOIN orders o ON c.customer_id = o.customer_id
WHERE c.customer_id IS NULL;

Performance Considerations

important

FULL OUTER JOIN Performance:

1. Resource Intensive: Requires processing all records from both tables
2. Memory Usage: Can consume significant memory for large datasets
3. Index Strategy: Ensure join columns are properly indexed
4. Result Set Size: Can produce very large result sets

Optimization Tips:

-- Use WHERE clauses to limit unnecessary records
SELECT c.customer_name, o.order_total
FROM customers c
FULL OUTER JOIN orders o ON c.customer_id = o.customer_id
WHERE c.status = 'Active' OR o.order_date >= '2024-01-01';

-- Consider using EXISTS for existence checks instead
SELECT c.customer_name,
       CASE WHEN EXISTS (SELECT 1 FROM orders WHERE customer_id = c.customer_id)
            THEN 'Has Orders' ELSE 'No Orders' END
FROM customers c;

Best Practices

tip

1. Use Sparingly: Only when you truly need all records from both tables
2. Handle NULLs Properly: Use COALESCE, ISNULL, or CASE statements
3. Consider Alternatives: Sometimes UNION ALL might be more efficient
4. Test Performance: Monitor query performance with large datasets
5. Document Intent: Clearly comment why FULL OUTER JOIN is necessary

Conclusion

FULL OUTER JOIN is a powerful tool for comprehensive data analysis and ensuring no records are lost when combining datasets. While resource-intensive, it's invaluable for data synchronization, migration validation, and complete reporting scenarios. Use it judiciously and always consider performance implications with large datasets.
